Requirements

Use this page to download Foundry OSD and prepare the admin workstation before creating deployment media.

Download Foundry OSD

Install the latest release that matches the workstation architecture.

Architecture	Installer	Download
x64	Foundry-win-x64.msi	Download x64
ARM64	Foundry-win-arm64.msi	Download ARM64

Use all releases when you need release notes, checksums, or older builds.

Use release builds

Use the MSI release build for normal deployment work. Build from source only when you are contributing to Foundry Project or validating local changes.

Workstation requirements

Prepare an admin workstation with:

• Windows 10 or Windows 11
• Local administrator rights
• Internet access
• Windows ADK 24H2 (10.1.26100.x)
• Windows PE add-on for the same ADK 24H2 release

Foundry OSD can help install, upgrade, or downgrade the ADK components when they are missing or incompatible.

Runtime dependencies

The MSI installer bootstraps the desktop runtime dependencies required by Foundry OSD:

• .NET Desktop Runtime
• Microsoft Edge WebView2 Runtime
• Microsoft Visual C++ runtime

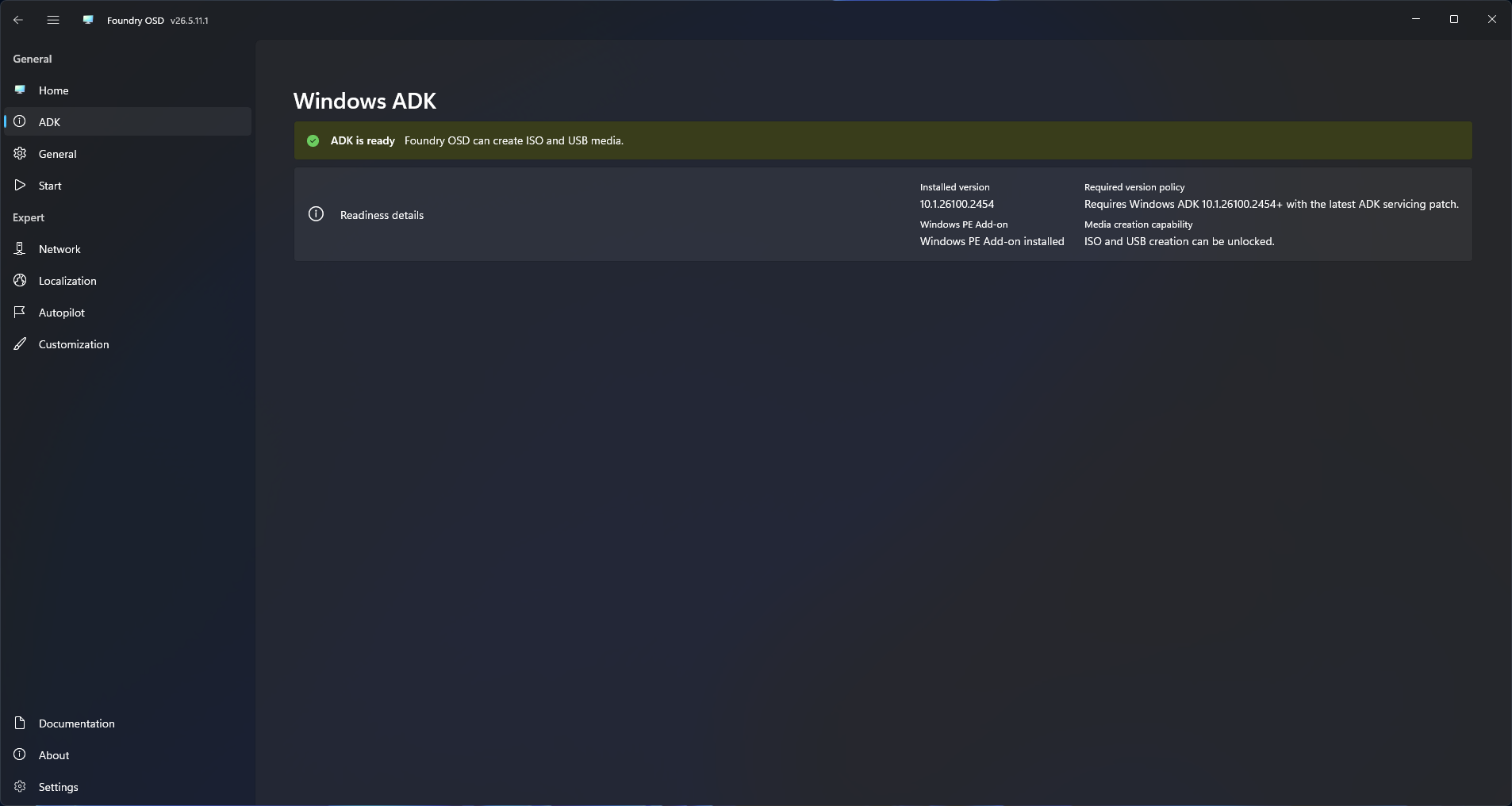

ADK readiness

Foundry OSD checks the ADK state before media creation. If the required ADK components are missing or incompatible, the main window shows an action banner.

When the banner appears:

1. Select Install ADK when no compatible ADK is installed.
2. Select Upgrade ADK when the installed ADK build is older than 10.1.26100.
3. Select Downgrade ADK when the installed ADK build is newer than 10.1.26100.
4. Wait for verification to finish.
5. Continue only after media creation actions are enabled.

Foundry OSD currently supports the Windows ADK 24H2 build line only. Newer ADK releases, including ADK 26H1 (10.1.28000.x), are not supported for Foundry OSD media creation.

Match ADK and WinPE versions

Use the Windows ADK and Windows PE add-on from the same release. Foundry OSD expects Windows ADK 24H2 (10.1.26100.x) and the matching Windows PE add-on.

Deployment scope

The current deployment scope is centered on Windows 11:

• Windows 11 23H2
• Windows 11 24H2
• Windows 11 25H2
• x64 and ARM64 deployment media

WinPE driver injection in Foundry OSD currently exposes these media driver vendor options:

• Dell
• HP

Deployment-time driver pack choices are loaded later in Foundry Deploy from the current catalog.

What each requirement supports

Requirement	Why it matters
Windows ADK and WinPE add-on	Required to create and customize WinPE-based media
Local administrator rights	Required for ADK management and USB provisioning
Internet access	Required for downloads, release assets, and catalog-backed workflows

Autopilot requirements

Autopilot mode requirements depend on the selected workflow:

• JSON profile injection requires one or more offline Autopilot profile JSON files.
• Zero-touch hardware hash upload requires tenant permissions to create or manage the app registration used by generated media, grant Microsoft Graph consent, create a matching PFX certificate, and keep WinPE network access to Microsoft Entra and Microsoft Graph.
• Interactive hardware hash upload requires OOBE network access, an active Intune tenant and license, admin consent for the delegated Microsoft Graph permission DeviceManagementServiceConfig.ReadWrite.All, a technician account with Intune Autopilot RBAC permissions, and Conditional Access policies that allow the device-code sign-in flow.

Foundry OSD provisions WinPE-SecureStartup by default with the other WinPE optional components. This applies even when Autopilot hardware hash upload is not enabled.

Read Autopilot Overview before creating Autopilot-enabled media.

Next step

Continue to Quick Start.
